Enjoying the ride starts with engine management.
SKU 122-4000

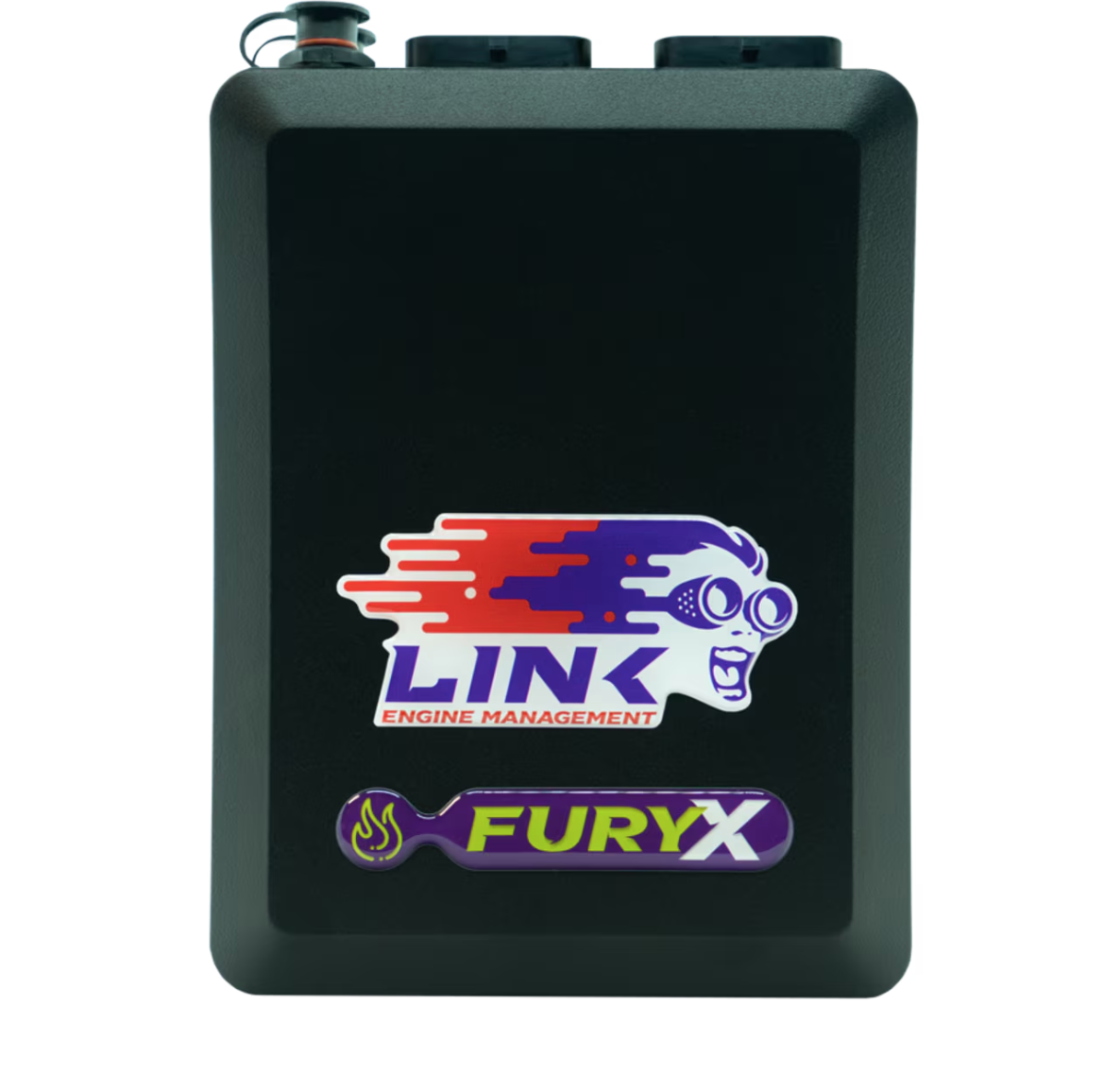

A premium ECU with Onboard Digital Wideband.
The FuryX is a premium ECU like the XtremeX, but with added Onboard Digital Wideband Lambda Control.
Now on the G4X platform, the FuryX features a faster processor, faster communications & a huge 512 megabytes of data logging!
With 8 injector drives and 6 ignition drives, the FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsport or more demanding road car applications.
The added benefit of a Onboard Digital Wideband Lambda Controller means higher accuracy of the unit, plus a simple setup.
The FuryX comes supplied with stickers, a quickstart guide, a mounting bracket and a USB tuning cable.
Requires 'A' & 'B' Looms or 'A' & 'B' Pin Kits, not supplied.
See the additional info for a full list of specifications.
SPEC OVERVIEW:
Inputs
8/10* x Digital inputs
4 x Temperature inputs
9 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
1 x LSU 4.9 Wideband lambda sensor input
Outputs
8 x Injection drives
6 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs
Communications
2* x CAN bus
1x Serial (RS232) connection
1x USB tuning connection
Physical
Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
Mass: 680grams
*DI 9 & 10 pins used by second CAN Bus
What's in the box?
Supplied with USB tuning cable and mounting bracket.
Requires “A” & “B” looms or “A” & “B” connector kits (not supplied).
If you are after more inputs, outputs or features, consider the G5 Voodoo Pro
The ECU is the single most important choice. We run Link ECU on every car from our 7 Second Race car, to all of our personal cars, and in house builds. If we have a choice we chose Link.
Authorized Link Dealer and Tuner
-
Engine Builds
All of our engines are built in house and hand assembled.
All engines are blueprinted and documented ensuring proper clearances for best performance and reliability.
Engine build services offered for Nissan RB, SR, KA, VQ and Toyota JZ
-
Turbos
We offer a variety of options depending on your current setup and budget.
Authorized Dealer for Garrett, Precision Borg Warner
Whether you decide on a direct replacement or a top mount turbo setup, we customize the kit to fit your car
-
Standalone ECU & Sensors
We are a Licensed Dealer Installer and Pro-Tuner for Link ECU, Haltech, ECU Master, AEM V2 and Infinity, Emtron
We recommend Link ECU for every platform we build. It's versatile. We use Link with our big power drag racing setups, on drift cars and street cars. From 350hp to 1500hp +. It's reliable and affordable when compared to other ECU's on the market.
-

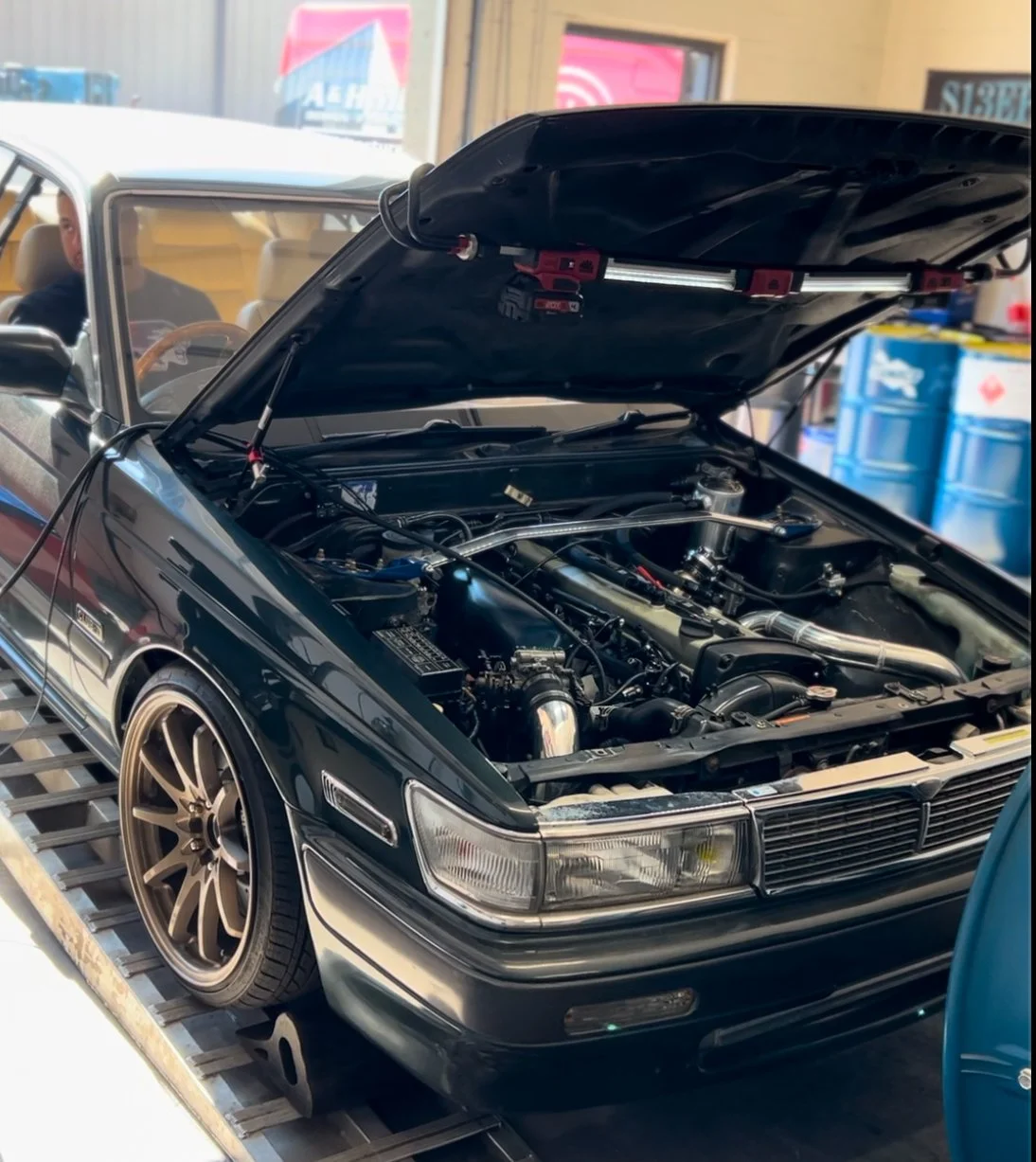

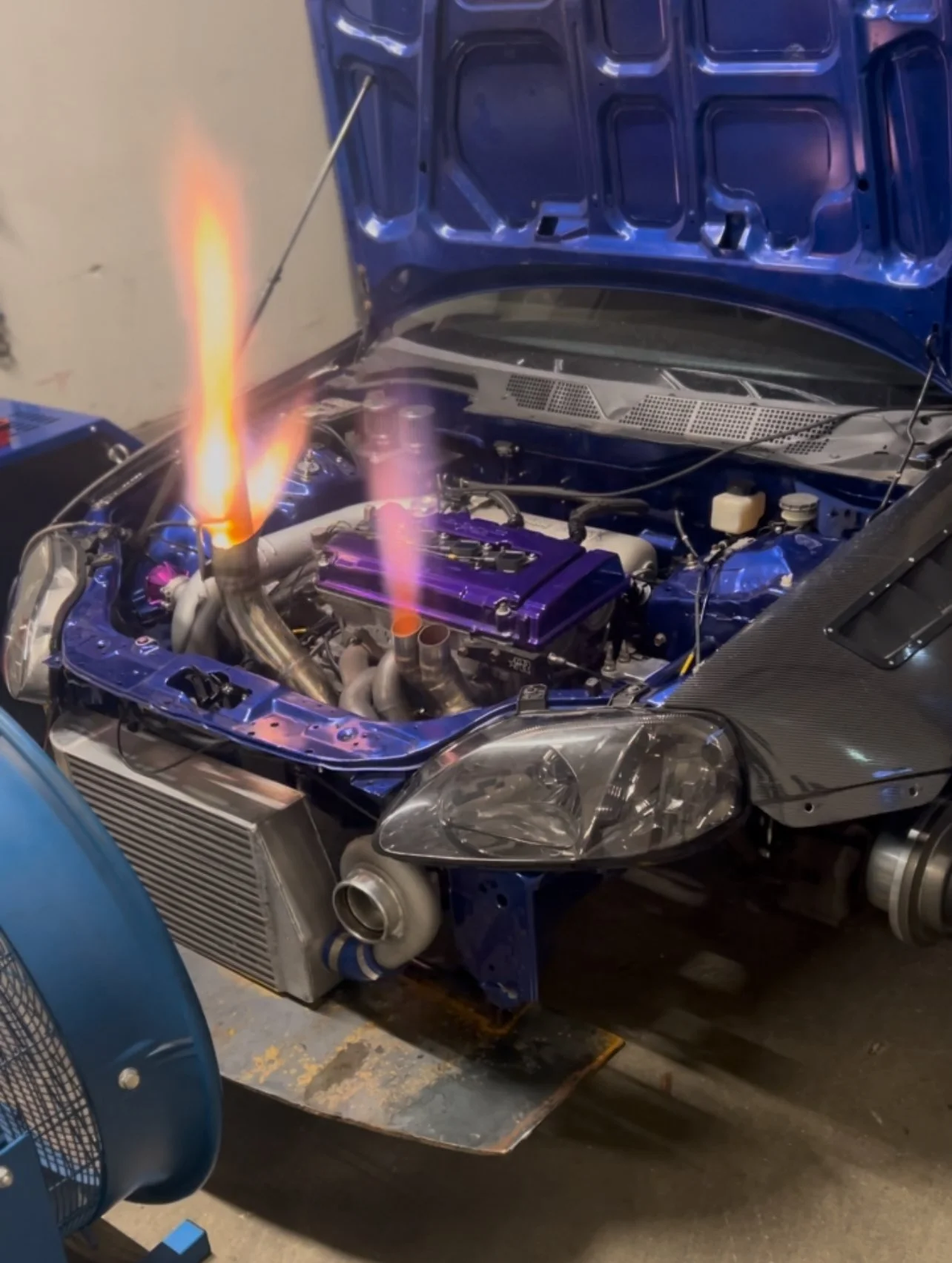

Dyno Tuning
Our Mainline Pro-hub 3000 is capable of reading up to 3000hp and is a comprehensive tuning tool able to simulate quarter mile runs and trans brake launches. Used for vehicles 700+ hp
Our Dyno Dynamics 2wd dyno is a load bearing twin roller dyno. (We are still capable of tuning most Nissan AWD vehicles.) Used for all vehicles < 700hp
-
BTI Gauges
Many options from the 52mm gauge pod to larger 3.5” touchscreen dash options. Consolidate your multiple gauge pods into one reliable gauge.
Adjust your boost on the fly and monitor real time data; AFR, oil pressure/temp H20, ethanol content and more.
We offer multiple varieties/styles to fit your budget. Including new R32 ashtray mounts - coming soon…
-
Fabrication services
In House
Fabrication based on your specific needs, precision fitment designed to match your style and setup.
Titanium Piping available (not done in house)
Custom Turbo kits -full hot and cold side intercooler piping, intercooler end tanks, down pipe, full exhaust, catch can, wg, coolant overflow tank, heat shields, custom mounts etc.
-

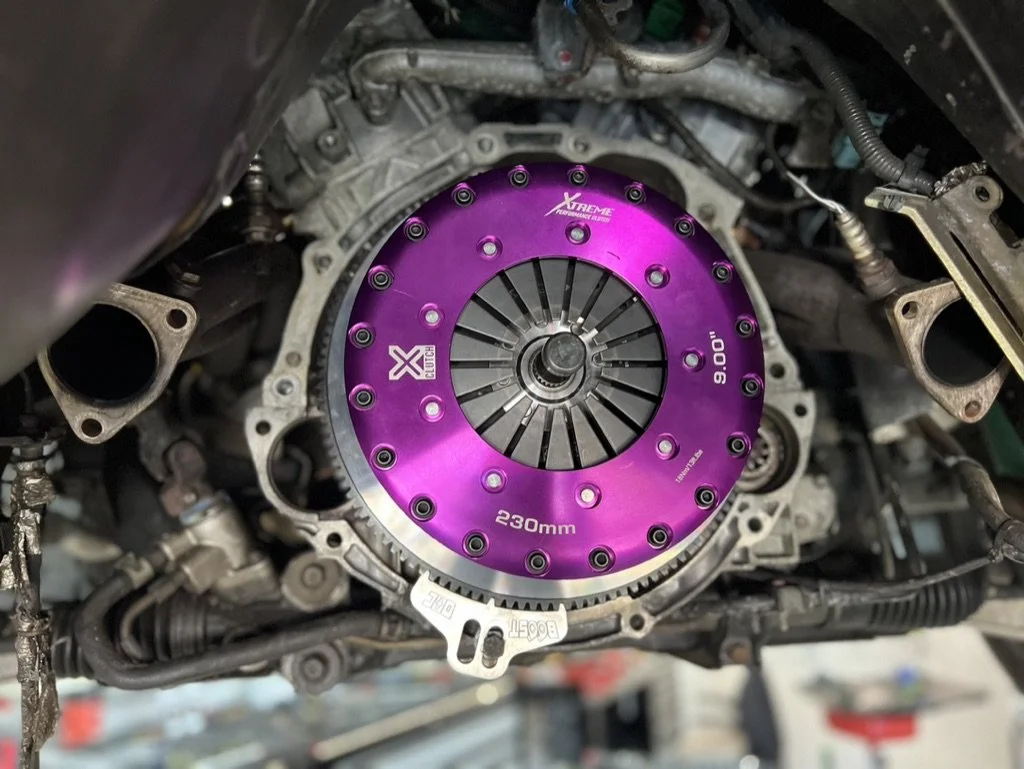

Clutch kits
Need something to hold that power?
When you start increasing the power we may suggest upgrading your clutch. We are an authorized dealer for many high end brands including but not limited to; Xclutch, OS Giken, Tilton, McLeod, ClutchMasters, ACT, Exedy, , Southbend, and more
-
Fuel System Components
Larger Injectors and larger/additional fuel pump may be needed depending on the power goal, fuel choice and current state of your fuel system.
We can get your injectors flow tested and cleaned if the size is adequate for your build.
We will inspect your fuel tank upon fuel system upgrade.
-
Suspension
Depending on the current state of your suspension components - sway bars, control arms, bushings etc. we will recommend upgrading various parts to ensure safety of the vehicle.
Drive ability and comfort are added benefits to the safety element.
